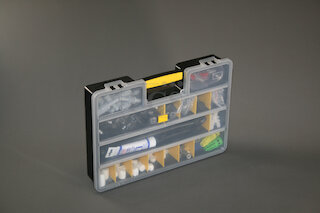

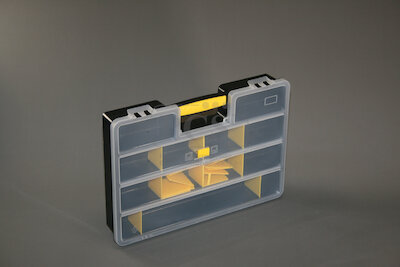

Service box
-
0
+
- Our service box is the ideal companion for your customer service vehicle
- Perfectly matched contents for servicing the battery surface
- 457 mm x 327 mm x 79 mm
- Lockable lid
The contents at a glance:
| Article description | Item number | Quantity |
| FRÖTEK Aquamatic plug S35 | 70150001 | 10 |
| FRÖTEK Float 13 mm / Ø 21 mm | 84040150 | 5 |
| FRÖTEK float 6.5 mm / Ø 21 mm | 84040151 | 5 |
| FRÖTEK float 24 mm / Ø 21 mm | 84040153 | 5 |
| FRÖTEK float 27 mm / Ø 21 mm | 84040154 | 5 |
| FRÖTEK float 38 mm / Ø 21 mm | 84040156 | 5 |
| FRÖTEK flow indicator 10 mm | 40060010 | 2 |
| FRÖTEK T-piece 6-6-6 | 40050023 | 5 |
| FRÖTEK T-piece 6-10-6 | 40050024 | 5 |
| FRÖTEK reducer 10 mm to 6 mm | 79090105 | 5 |
| FRÖTEK PVC hose 6 x 1.5 mm (transparent) | 81090006 | 2 m |
| FRÖTEK plug lifter | 81080110 | 1 |
| FRÖTEK connection coupling 10 mm | 40080003 | 5 |
| FRÖTEK connection nipple 6 mm | 40080008 | 5 |
| FRÖTEK connection nipple 10 mm | 40080009 | 5 |
| FRÖTEK pole screw M10x18 mm with measuring point | 79090028 | 6 |
| FRÖTEK hinged cover plug S35 with O-ring | 40350300 | 2 |
| FRÖTEK insert basket 42 mm (green) | 51160131 | 2 |
| FRÖTEK insert basket 48.5 mm (white) | 51160132 | 2 |
| FRÖTEK insert basket 54 mm (yellow) | 51160133 | 2 |
| FRÖTEK insert basket 60 mm (red) | 51160134 | 2 |
| FRÖTEK insert basket 66 mm (natural) | 51160135 | 2 |
| FRÖTEK insert basket 77 mm (blue) | 51160136 | 2 |
| FRÖTEK strain relief 35 mm² (Ø 12.7 mm) | 83030014 | 2 |
| FRÖTEK strain relief 50 mm² (Ø 14 mm) | 83030015 | 2 |
| FRÖTEK Flex connector 35 mm² / 75 mm | 6103510075 | 2 |
| FRÖTEK Flex connector 35 mm² / 110 mm | 6103510110 | 1 |
| FRÖTEK Flex connector 35 mm² / 150 mm | 6103510150 | 2 |
| FRÖTEK Flex connector 35 mm² / 170 mm | 6103510170 | 1 |
| FRÖTEK Flex connector 35 mm² / 300 mm | 6103510300 | 2 |
| FRÖTEK flexible connector 50 mm² / 130 mm | 6105010130 | 2 |
| FRÖTEK flexible connector 50 mm² / 150 mm | 6105010150 | 1 |
| FRÖTEK flexible connector 50 mm² / 330 mm | 6105010330 | 2 |
| Tubular cable lug 35 mm² / M10 | RKS03510 | 2 |
| Tubular cable lug 50 mm² / M10 | RKS05010 | 2 |
| Tubular cable lug 70 mm² / M10 | RKS07010 | 2 |
| Pole grease (50g) | 3140 | 1 |
| FRÖTEK end plug 6 mm | 40050036 | 6 |
| Pole adapter M10 / M10 | 73050827 | 2 |
| O-ring 15 x 3 mm | 10587 | 2 |
| Spring washer Ø 10.2 | FR-B-10-A2 | 2 |
| Hexagon nut M10 | SK-M10-A2-70 | 2 |
